AoShuo 2040 1070nm 380V 50hz CNC Laser Cutting Machine

Qingdao Aoshuo CNC Router Co., Ltd.
Contact Now

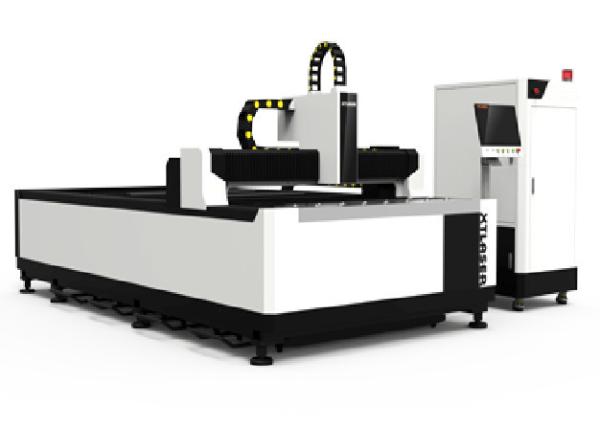

AoShuo 2040 1070nm 380V 50hz CNC Laser Cutting Machine

Brand Name : AoShuo

Model Number : 2040

Certification : CE ISO

Place of Origin : SHANDONG, CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, D/A, D/P

Supply Ability : 50/MONTH

Delivery Time : 4 weeks

Packaging Details : Packing in steel pallet

Name : 380V 50hz CNC Laser Cutting Machine

Cooling Mode : Water Cooling

Servo Motor : France Schneider

Working Area : 1500mm*3000mm 2000*4000mm

Power : 380V 50hz

Control Software : Cypcut Control System

Cutting Thickness : 0.2-8mm

Cutting Speed : 18m/min , 24m/min

Dimention : 44300mm*2348mm*1730mm

Applicable Material : Metal

Output power : 500W 1000W

Laser wave length : 1070nm

Weight : 3000KG

Contact Now

AoShuo 2040 1070nm 380V 50hz CNC Laser Cutting Machine





Main Features:



* Welded structure lathe bed, after quenching, tempering and stress relief treatment, the platform and mounting hole position are processed by CNC machining center at once time to ensure machine strength and precision;
* Imported grinding grade ball screw and high-precision linear guide rail, rack, with high processing precision;
* Equipment with servo motor and driver, the torque is stronger and the running speed is faster and smoother;
* Follow-up smoking system, smoking effect is better, saving energy;
* Adopting advanced laser cutting head and lens, focusing spot is smaller, cutting line is finer, work efficiency is higher and processing quality is better.



Product parameter:



Type
AS-500W
AS-1000W
Output power
500W
1000W
The medium of laser
diode-pumped continuous yb-doped fiber
Laser wave length
1070nm
Power
380V 50HZ

Cutting area

3000mm*1500mm
Max cutting speed
18m/min
24m/min
Cooling method
Water cooling
Driving System
Imported Servo Motor
Min line Width
≤0.1mm
Cutting thickness
0.2-8mm (according to material)
Continuous working time
24hours
Weight
About 3000KG
Dimention
44300mm*2348mm*1730mm (length*width*height)
Environment Temperature
5℃ -35℃



Cnc laser cutting machine advantages :



1. Excellent Laser Beam Quality: Fiber laser has smaller focus diameter and high work efficiency, high accuracy and cutting quality.
2 High Cutting Speed: cutting speed is more than 20M/min.
3. Stable Running: adopting the top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4. High Efficiency for Photoelectric Conversion : Compare with CO2 laser cutting machine ,fiber laser cutting machine have 3 times photoelectric conversion efficiency.
5. Low Cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Free of Maintenance: Fiber optical transmission, fiber line transmission, no need reflect lens, without optical adjustment, save maintenance cost.
7. Easy Operations: fiber line transmission, no adjustment of optical path;
8. Super Flexible Optical Effects: compact design, compact and easy to flexible manufacturing requirements.



Application materials



Specialized fast speed cutting of a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, steel, various alloy plate, rare metal and other materials



Appication Industries



Widely used in electrical power, automobile manufacturing, machinery and equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising signs, car decoration, sheet metal production, lighting hardware, display equipment, precision components, metal products and other industries;



What is the maximum cutting thickness?



The cutting thickness is related to the laser power.



300W: 1.5mm stainless steel, 4mm carbon steel



500W: 3mm stainless steel, 6mm carbon steel



1000W: 5mm stainless steel, 12mm carbon steel



2000W: 10mm stainless steel, 18mm carbon steel



Note: Only 1KW or above fiber laser can cut aluminum, copper, brass and other highly reflective metal plates.
