1070nm AoShuo 6020 800mm/S Laser Cutting Pipe Machine

Qingdao Aoshuo CNC Router Co., Ltd.
Contact Now

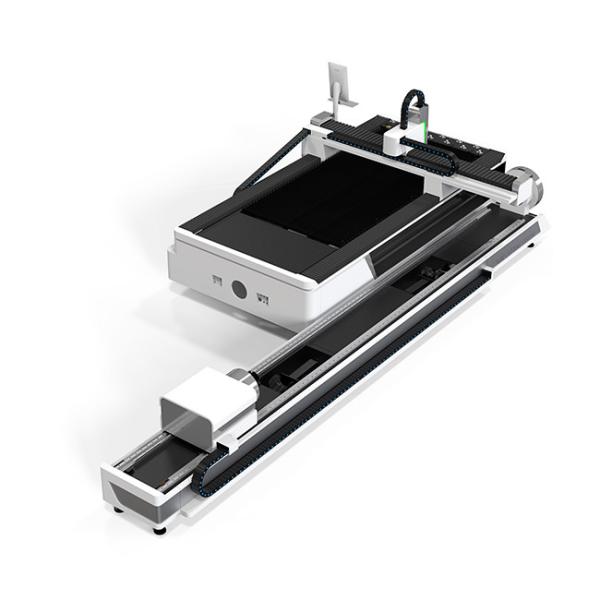

1070nm AoShuo 6020 800mm/S Laser Cutting Pipe Machine

Brand Name : AoShuo

Model Number : 6020

Certification : CE ISO

Place of Origin : SHANDONG, CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50/MONTH

Delivery Time : 4 weeks

Packaging Details : Packing in steel pallet

Name : 1070nm 800mm/s Laser Cutting Pipe Machine

Laser Wavelength : 1070nm

Maximum Operating Speed : 800mm/s

Key Selling Points : High accuracy , Multifunctional

Cooling Method : Water Cooling

Laser Type : Fiber Laser

Cutting Thickness : 30mm

Power (watt) : 800W 1000W 1500W

Material Cutting Thickness : 0.2-30mm

Electric Power Supply : AC380V 50Hz/5KW

Repeat Position Accuracy : ±0.05mm/500mm

Applicable Material : Acrylic, Glass, Leather, MDF, Metal, Paper, plastic

Contact Now

1070nm AoShuo 6020 800mm/S Laser Cutting Pipe Machine



Advantage

1. Adopt high-tech,have best precision and engraving smaller letters
2. All models adopt highest imported configuration,ensure the high accuracy,faster speed and longer life.
3. It can cut via any curve fast and consecutinely. the laser heads moving in beautiful arc just evoke your imagination of top grade racing car
4. It can memorize more than 128 designs,so the customers can easily complete the production of 128 different designs without connection to the computer.
5. LCD controlling panel support various languages and clear display,more convenient operation.
6. Can install multiple laser heads, improve work efficiency
7. Different materials, different cutting thicknesses.can produce samples free.



Application of Laser Cutting Pipe Machine:



Application Materials: 2000W Laser Cutting Pipe Machine is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.



Application Industries: 800mm/s Laser Cutting Pipe Machine are widely used in manufacturing Billboard, Advertising, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, etc.


Main configuration:



Item Name Quantity Brand
Laser 800W fiber laser 1 SET Maxphotonics
Cutting head Specialized cutting head 1 SET RayTools BT( Switzerland)
  Machine bed 1 SET China
  Precise Rack 1 SET TAIWAN DINSENSE
Machine body Precise linear guide rail 1 SET TAIWAN HIWIN/ TAIWAN shac
  X,Y axis servo and driver 1 SET LETRO
  Reducer system 1 SET TAIWAN DINSENSE
  controller 1 SET FRANCE Schneider
  Machine bed accessories 1 SET China
Digital cutting system Controller system 1 SET Shanghai cypcut /Shanghai Empower
Accessories Chiller 1 SET Teyu
  Waste recycling equipment 1 SET China



Technical parameters:



Model RL3015
Laser Working Medium ND:YVO4
Laser Wavelength 1070nm
Power 800W/1000W/1500W
Beam Quality <0.373mrad
Max cutting thickness 10mm carbon steel
Working area 3000mm×1500mm
Positioning Accuracy ≤±0.05㎜/m
Repeatition Accuracy ≤±0.05㎜/m
Power Supply 380V/50Hz





500w fiber Speed for example:



Material m/min
carbon steel 1mm 8
carbon steel 2mm 4.2
carbon steel 3mm 2.1
carbon steel 4mm 1.2
stainless steel 1mm 7.2
stainless steel 1.5mm 3
stainless steel 2mm 1.8
galvanized sheet0.8mm 5
galvanized sheet1.2mm 2.6
galvanized sheet1.5mm 1.8
