3000KG 500W 1kw 1070nm High Speed Laser Cutting Machine

Qingdao Aoshuo CNC Router Co., Ltd.
Contact Now

3000KG 500W 1kw 1070nm High Speed Laser Cutting Machine

Brand Name : AoShuo

Model Number : 2040

Certification : CE ISO

Place of Origin : SHANDONG, CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, D/A, D/P

Supply Ability : 50/MONTH

Delivery Time : 4 weeks

Packaging Details : Packing in steel pallet

Name : 1070nm High Speed Laser Cutting Machine

Laser Wavelength : 1070nm

Feature : High Speed

Output power : 500W 1000W 1kw

Working Area : 1500mm*3000mm 2000*4000mm

Dimention : 44300mm*2348mm*1730mm

Cooling Mode : Water Cooling

Cutting Area : 3000mm*1500mm

Control Software : Cypcut Control System

Cutting Thickness : 0.2-8mm

Cutting Speed : 18m/min , 24m/min

Weight : 3000KG

Contact Now

3000KG 500W 1kw 1070nm High Speed Laser Cutting Machine





Feature:

◆ Adopt industrial heavy duty steel structure , under heat treatment,will not deform after long time using.
◆ Adopt NC pentahedron machining, milling, boring, tapping and other machining processes to ensure high processing accuracy.
◆ Configure with Japan THK linear rail for all axis, to ensure durable and high precision for long time processing.
◆ Adopt France Schneider AC servo motor, large power, stronger torque force, working speed is more stable and faster.
◆Configure with non-contact auto follow function, ensure the best focal length and cutting effect.
◆ Fiber laser transmitting, flexible processing, realized high accuracy cutting on every point.
◆ Professional laser cutting CNC control system, connected with computer, simple operation.
◆ Configure professional industrial chiller with double temperature control molds, high cooling efficiency and high transferring ratio of laser,.
◆ Compatible with multiple software, can design ant graphic and letters as you like, operating simple, flexible and easy.



Product parameter:



Type
AS-500W
AS-1000W
Output power
500W
1000W
The medium of laser
diode-pumped continuous yb-doped fiber
Laser wave length
1070nm
Power
380V/50HZ

Cutting area

3000mm*1500mm
Max cutting speed
18m/min
24m/min
Cooling method
Water cooling
Driving System
Imported Servo Motor
Min line Width
≤0.1mm
Cutting thickness
0.2-8mm (according to material)
Continuous working time
24hours
Weight
About 3000KG
Dimention
44300mm*2348mm*1730mm (length*width*height)
Environment Temperature
5℃ -35℃



Cnc laser cutting machine advantages :



1. Excellent Laser Beam Quality: Fiber laser has smaller focus diameter and high work efficiency, high accuracy and cutting quality.


2 High Cutting Speed: cutting speed is more than 20M/min.


3. Stable Running: adopting the top world import fiber lasers, stable performance, key parts can reach 100,000 hours;


4. High Efficiency for Photoelectric Conversion : Compare with CO2 laser cutting machine ,fiber laser cutting machine have 3 times photoelectric conversion efficiency.


5. Low Cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.


6. Free of Maintenance: Fiber optical transmission, fiber line transmission, no need reflect lens, without optical adjustment, save maintenance cost.


7. Easy Operations: fiber line transmission, no adjustment of optical path;


8. Super Flexible Optical Effects: compact design, compact and easy to flexible manufacturing requirements.



Applied industries: rail transit, automobile, machinery, electrical manufacturing, elevator manufacturing, household appliances,kitchen and sanitary ware, advertising, and other machinery manufacturing and processing industries.

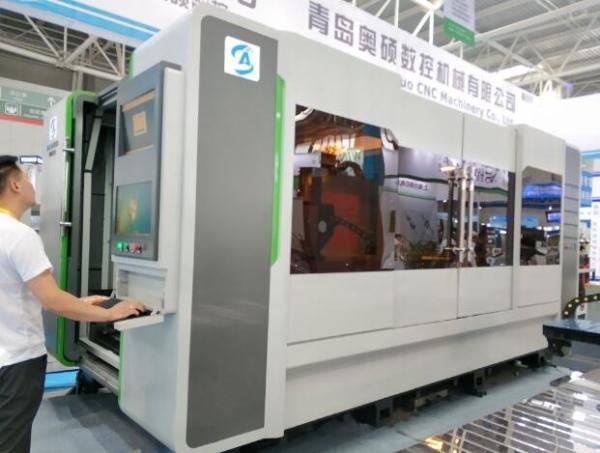

3000KG 500W 1kw 1070nm High Speed Laser Cutting Machine3000KG 500W 1kw 1070nm High Speed Laser Cutting Machine
