Water Cooling 24m/min 1070nm Metal Laser Cutting Machine

Qingdao Aoshuo CNC Router Co., Ltd.
Contact Now

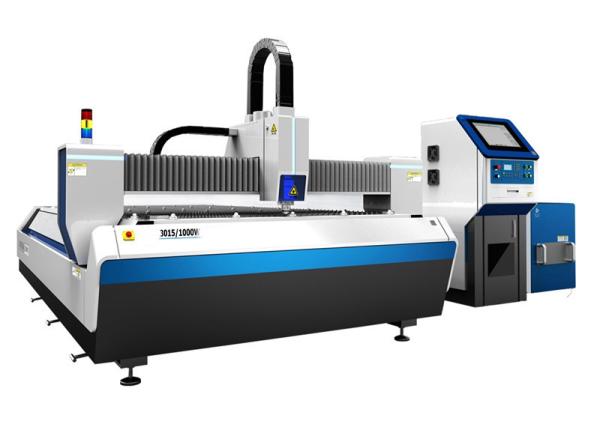

Water Cooling 24m/min 1070nm Metal Laser Cutting Machine

Brand Name : AoShuo

Model Number : 2040

Certification : CE ISO

Place of Origin : SHANDONG, CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, D/A, D/P

Supply Ability : 50/MONTH

Delivery Time : 4 weeks

Packaging Details : Packing in steel pallet

Name : 1070nm Metal Laser Cutting Machine

Laser Wavelength : 1070nm

Dimention : 44300mm*2348mm*1730mm

Laser wave length : 1070nm

Servo Motor : France Schneider

Working Area : 1500mm*3000mm 2000*4000mm

Cooling Mode : Water Cooling

Cutting Area : 3000mm*1500mm

Control Software : Cypcut Control System

Cutting Thickness : 0.2-8mm

Cutting Speed : 18m/min , 24m/min

Output power : 500W 1000W

Weight : 3000KG

Contact Now

 Water Cooling 24m/min 1070nm Metal Laser Cutting Machine



 Fiber Laser Cutting Machine Features:



1. The combination of cutting-edge fiber laser technology and digital control technology represents the most advanced laser cutting level;
2. Professional laser cutting machine CNC control system, computer operation, can guarantee the cutting quality, make the cutting work more convenient, and the operation is simpler;
3. Machine gantry structure, high damping bed, good rigidity, can withstand higher speed and acceleration;
4. Exchange workbench configuration, shorten standby time, and effectively improve work efficiency by more than 30%;
5.This model adopts imported AC servo system drive and imported transmission system. The machine tool movement mechanism adopts imported gear rack transmission and linear guide rail to ensure high speed, high precision and high reliability of the equipment.



Product parameter:



Type
AS-500W
AS-1000W
Output power
500W
1000W
The medium of laser
diode-pumped continuous yb-doped fiber
Laser wave length
1070nm
Power
380V/50HZ

Cutting area

3000mm*1500mm
Max cutting speed
18m/min
24m/min
Cooling method
Water cooling
Driving System
Imported Servo Motor
Min line Width
≤0.1mm
Cutting thickness
0.2-8mm (according to material)
Continuous working time
24hours
Weight
About 3000KG
Dimention
44300mm*2348mm*1730mm (length*width*height)
Environment Temperature
5℃ -35℃





Cnc laser cutting machine advantages :



1. Excellent Laser Beam Quality: Fiber laser has smaller focus diameter and high work efficiency, high accuracy and cutting quality.


2 High Cutting Speed: cutting speed is more than 20M/min.


3. Stable Running: adopting the top world import fiber lasers, stable performance, key parts can reach 100,000 hours;


4. High Efficiency for Photoelectric Conversion : Compare with CO2 laser cutting machine ,fiber laser cutting machine have 3 times photoelectric conversion efficiency.


5. Low Cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.


6. Free of Maintenance: Fiber optical transmission, fiber line transmission, no need reflect lens, without optical adjustment, save maintenance cost.


7. Easy Operations: fiber line transmission, no adjustment of optical path;


8. Super Flexible Optical Effects: compact design, compact and easy to flexible manufacturing requirements.



Industry applications


Applied to sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automotive, grain machinery, textile machinery, construction machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, process gifts, tool processing, decoration, advertising, metal external processing and other manufacturing and processing industries.



What is the maximum cutting thickness?



The cutting thickness is related to the laser power.



300W: 1.5mm stainless steel, 4mm carbon steel



500W: 3mm stainless steel, 6mm carbon steel



1000W: 5mm stainless steel, 12mm carbon steel



2000W: 10mm stainless steel, 18mm carbon steel



Note: Only 1KW or above fiber laser can cut aluminum, copper, brass and other highly reflective metal plates.



Water Cooling 24m/min 1070nm Metal Laser Cutting MachineWater Cooling 24m/min 1070nm Metal Laser Cutting Machine
